Honda 39400-SH3-003 Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba)

1988-1991 Honda 39400SH3003

Customer Questions & Expert Answers (2)
39400-SH3-003 Honda Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba) Product Photo 1 of 2
39400-SH3-003 Honda Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba) Product Photo 1 of 2
39400-SH3-003 Honda Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba) Product Photo 2 of 2

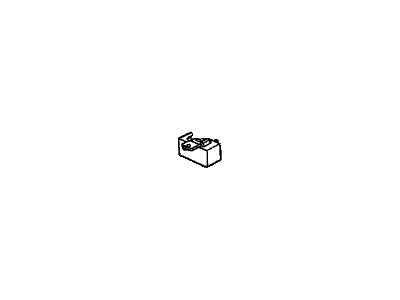

39400-SH3-003 Honda Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba) Illustration 1 of 1
  • Part Description
    Main Relay
  • Replaces
    39400-SK7-003, 39400-SD4-003
  • Manufacturer
    Honda
Make sure this part fits
$128.84 MSRP: $183.53
You Save: $54.69 (30%)
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 39400-SH3-003 Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba) is Ref No. 22 in the diagram below

    1991 Honda Civic Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba) Diagram for 39400-SH3-003
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Honda
    Manufacturer Part Number39400-SH3-003
    Part DescriptionMain Relay
    Item Dimensions3.5 x 3.0 x 2.8 inches
    Item Weight0.40 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces39400-SK7-003, 39400-SD4-003
    ManufacturerHonda
    SKU39400-SH3-003
    WarrantyThis genuine Honda part is guaranteed by Honda's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Body & Trim Emission & Transmission
    1991 Honda CRX2 Door DX, 2 Door HF, 2 Door SIKA 4AT, KA 5MT, KH 5MT, KL 4AT, KL 5MT
    1990 Honda CRX2 Door DX, 2 Door HF, 2 Door SIKA 4AT, KA 5MT, KH 5MT, KL 4AT, KL 5MT
    1989 Honda CRX2 Door DX, 2 Door HF, 2 Door SIKA 4AT, KA 5MT, KH 5MT, KL 4AT, KL 5MT
    1988 Honda CRX2 Door DX, 2 Door HF, 2 Door SIKA 4AT, KA 5MT, KH 5MT, KL 4AT, KL 5MT
    1991 Honda Civic3 Door DX, 3 Door SI, 3 Door STD, 4 Door DX, 4 Door EX, 4 Door LX, 5 Door 4WD, 5 Door DXKA 4AT, KA 4MT, KA 5MT, KL 4AT, KL 4MT, KL 5MT
    1990 Honda Civic3 Door DX, 3 Door SI, 3 Door STD, 4 Door DX, 4 Door EX, 4 Door LX, 5 Door 4WD, 5 Door DXKA 4AT, KA 4MT, KA 5MT, KL 4AT, KL 4MT, KL 5MT
    1989 Honda Civic3 Door DX, 3 Door SI, 3 Door STD, 4 Door DX, 4 Door LX, 5 Door (Wagovan), 5 Door 4WD, 5 Door DXKA 4AT, KA 4MT, KA 5MT, KL 4AT, KL 4MT, KL 5MT
    1988 Honda Civic3 Door DX, 3 Door STD, 4 Door DX, 4 Door LX, 5 Door (Wagovan), 5 Door 4WD, 5 Door DXKA 4AT, KA 4MT, KA 5MT, KL 4AT, KL 4MT, KL 5MT

  • Customer Questions & Expert Answers

    Q:
    I would like to make sure that this is the correct fit for my car Posted by HondaPartsNow Specialist
    A:
    You can Select Your Vehicle to check if 39400-SH3-003 fits your vehicle.
    Posted by HondaPartsNow Specialist
    Q:
    How tonstall a relay between the battery and load help reduce voltage drop and How to test, remove, and install it on Honda CRX? Posted by Customer
    A:
    Location of battery/load may be such that a switch has to be positioned at a distance from the two, defeating the purpose of a low voltage drop by having a long wire. 'This eliminates this voltage drop when a relay is placed between the battery and load and since the switch controls the relay, it passes a reduced amount of amperage'. To check the system and diagnostic the problem first remove the negative battery terminal, then measure the resistance between terminals 3 and 4 or A to B. After that apply +12v across terminals 1 and 2, check for the resistance that is available between terminals 3 and 4 or A to a. If the resistance is not in the specified range or the multimeter shows '-' then the relay has to be replaced. One has to remove the negative battery terminal, find the relay, and then unplug the wire connector if it is for removal. If this is required then undo the attaching bolt and take out the relay and the process of installation will be vice versa of the above mentioned.
    Posted by HondaPartsNow Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Honda Part 39400-SH3-003, the Right Choice

To ensure reliability, purchase Honda part # 39400-SH3-003 Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba). It is sometimes referred to as Honda Relay. In terms of quality, OEM parts are the wise choice for Honda owners who want to keep their vehicles at peak performance. They are manufactured to follow official strict factory specifications and are made in world-class facilities. They undergo rigorous tests to ensure that they are durable and safe to use. This part fits 1988-1991 Honda CRX, 1988-1991 Honda Civic.

HondaPartsNow.com is a leading supplier of genuine Honda parts and accessories such as Honda 39400SH3003 Relay Assembly, Main (Rz-0063) (Pgm-Fi) (Mitsuba). When it comes to choosing the right parts for your vehicle, the solution is simple: shop from our wide selection of genuine Honda parts at competitive prices available on HondaPartsNow.com. We prioritize your convenience, 100% satisfaction, and peace of mind by offering a user-friendly catalog, manufacturer-warranted OEM Honda parts, a hassle-free return policy, and swift delivery service.
