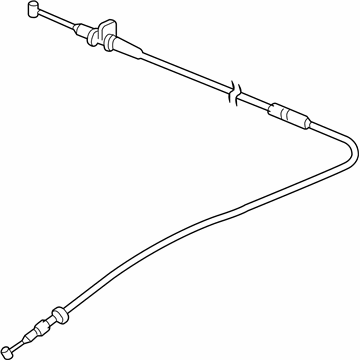

Honda 17880-RAA-A01 Wire, Actuator

You can Select Your Vehicle to check if 17880-RAA-A01 fits your vehicle.

To remove and install the accelerator cable on a Honda vehicle, first remove the engine cover or the two accelerator cable cover bolts and remove the accelerator cable cover from the Accelerator Pedal Position (APP) sensor. Then rotate the throttle lever cam on the throttle body or on the APP sensor until the cable is lined up with the slot in the cam, then disengage the cable from the cam. Loosen the accelerator cable locknut at the cable bracket and disengage the accelerator cable from its bracket. Note the routing of the accelerator cable, then trace the cable from the cable bracket back to the firewall, detaching or disengaging it from any clamps, clips or cable guides. Using a flashlight so that you can see underneath the dash, locate the cable connection at the top of the accelerator pedal, push the upper end of the pedal forward and disengage the cable from the pedal arm. To disengage the accelerator cable from the firewall, remove the two retaining nuts that secure the cable mounting flange to the firewall, then pull the cable through the firewall into the vehicle. Installation is the reverse of removal. When done, adjust the cable by putting the shift lever in Park or Neutral, starting the engine, holding it at 3000 rpm until the radiator fan comes on, then allowing it to idle. Back off the locknut, then place the accelerator cable in the cable bracket with both the adjusting nut and the locknut on the side of the cable bracket facing away from the throttle body. Then turn the adjusting nut until there is no free play between the adjusting nut and the cable bracket. Lift up the adjusting nut, place it on the other side of the cable bracket, then lighten the locknut. Finally, verify that the throttle valve opens fully when you depress the accelerator pedal and that it returns to its idle position when you release the pedal.
