Genuine Honda Del Sol Accelerator Cable
Choke Cable- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
14 Accelerator Cables found

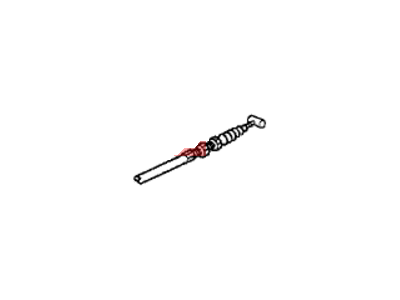

Honda Del Sol Accelerator Cable
The Honda Del Sol Accelerator Cable provides precise control to the driver by connecting the gas pedal to the throttle plate in the air intake of the engine. The flexible steel core slides within a protective sheath, so when the pedal is pressed, the tension travels instantly through the Accelerator Cable and rotates the throttle plate, admitting extra air that pulls more fuel from the float bowl, thanks to the pressure drop at the venturi. This simple mechanical pull system allows the driver to modulate the airflow in a smooth manner, keeping the perfect air-fuel mixture for cruising or hard acceleration. During the production run of the Del Sol, there were two control styles in the greater world of automobiles, a pure cable pull and a mixed mechanical linkage, but all Del Sols continued to use the simple Accelerator Cable due to its light weight and direct feel that was ideal for the nimble chassis. No electronic throttles were applied, so each Honda driver has linear response without being filtered by sensors. Regular routing loops and factory-set adjusters keep slack minimal, ensuring the Accelerator Cable opens the throttle plate in perfect sync with pedal travel while the spring on the plate snaps it closed the moment pressure is released, keeping the job of sustained dependable performance for every Honda Del Sol enthusiast. Proper lubrication of the Accelerator Cable also helps to extend its life.
In search of affordable OEM Honda Del Sol Accelerator Cable? Consider browsing through our extensive inventory of genuine Honda Del Sol Accelerator Cable. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.
Honda Del Sol Accelerator Cable Parts Questions & Experts Answers
- Q: How to detach and adjust the accelerator cable on Honda Del Sol?A:Detach the cable from the negative battery terminal, then loosen the locknut and remove the accelerator cable from its bracket while holding the adjusting nut. Rotate the throttle shaft bellcrank until the cable is out of its guide groove and detach it from the bellcrank by removing the cable end from the throttle valve. Working underneath the dash, detach the cable from the accelerator pedal by pulling the cable end out and lifting it out of the recess in the pedal. Pull the grommet from the firewall and pull the cable through from the engine compartment side, with installation being the reverse of removal. To adjust the cable, lift it to remove slack, then turn the adjusting nut until it is 1/8-inch from the cable bracket and tighten the locknut. Check cable deflection at the throttle linkage, which should be between 3/8 to 1/2-inch; if not, loosen the locknut and adjust accordingly. After adjusting, have an assistant verify that the throttle valve opens fully when the accelerator pedal is depressed and returns to the idle position when released, ensuring the cable operates smoothly without binding or sticking. If the vehicle has an automatic transaxle, adjust the transaxle Throttle Valve (TV) cable.
