How to check and replace a Transaxle Mount on Honda Del Sol?

Raise the vehicle and place it on jackstands. Insert a screwdriver between the mount and transaxle and try to lever it. If it moves more than 1/2-3/4-inch, replace the mount. Support the transaxle with a jack, remove the nuts and bolts and remove the mount. Installation is reverse of removal.

Genuine Honda Del Sol Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Motor And Transmission Mounts found

View related parts

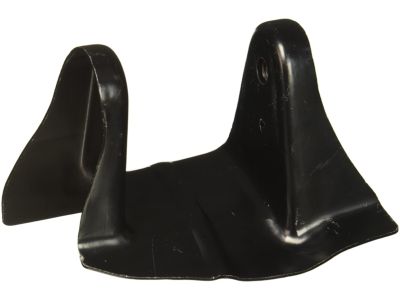

Honda Del Sol Bracket, Transmission Mounting
Part Number: 60831-SR3-300ZZ
Product Specifications
- Other Name: Mount Bracket
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 1993-1997 Honda Del Sol | 2 Door S, 2 Door SI, 2 Door V-TEC | KA 5MT, KL 5MT
View related parts
Honda Del Sol Engine Side Mounting Rubber Assembly
Part Number: 50820-SR3-003
Product Specifications
- Other Name: Side Mount; Mount
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 1994-1997 Honda Del Sol | 2 Door SI | KA 4AT, KA 5MT, KL 4AT, KL 5MT
View related parts
Honda Del Sol Bracket, Transmission Mounting
Part Number: 60831-SR3-900ZZ
Product Specifications
- Other Name: Mount Bracket
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 1993-1997 Honda Del Sol | 2 Door S, 2 Door SI | KA 4AT, KL 4AT
View related parts
Honda Del Sol Bracket, Transmission Mounting (Automatic)
Part Number: 50825-SR3-980
Product Specifications
- Other Name: Transmission Mount Bracket
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 1993-1997 Honda Del Sol | 2 Door S, 2 Door SI | KA 4AT, KL 4AT
View related parts
Honda Del Sol Rubber Assy., Engine Side Mounting (Hydro)
Part Number: 50820-SR3-J11
Product Specifications
- Other Name: Side Mount; Mount
- Replaces: 50820-SR3-J03, 50820-SR3-J02
- Warranty: This genuine part is guaranteed by Honda's factory warranty.
Fits the following Vehicles:
- 1993-1997 Honda Del Sol | 2 Door S, 2 Door SI, 2 Door V-TEC | KA 4AT, KA 5MT, KL 4AT, KL 5MT

Honda Del Sol Motor And Transmission Mount

Honda Del Sol Motor And Transmission Mount helps the sporty two-seater keep its cool by holding the engine and gearbox in place firmly while absorbing the shake and noise generated on every drive. Standard Del Sol models are based on classic Honda engineering by using a rubber-insulated Motor And Transmission Mount that sandwiches metal plates on tough elastomer to support the powertrain and prevent cabin vibration. Some later Honda trims upgraded to a hydraulic Motor And Transmission Mount unit, a Motor And Transmission Mount filled with fluid that better smothers buzz without allowing the engine to wander under throttle. A few high-tech versions of the Del Sol adopted electronically controlled active Motor And Transmission Mount setups, which remain soft at idle for comfort purposes but increase stiffness at higher revs to lock the drivetrain in position. Over time, rubber can split, hydraulic units may leak, and active systems can lose control signals, so a tired Motor And Transmission Mount will often announce itself with clunks or serious vibration, telling Del Sol fans to tend to their Honda before parts break.

In search of affordable OEM Honda Del Sol Motor And Transmission Mount? Consider browsing through our extensive inventory of genuine Honda Del Sol Motor And Transmission Mount. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.

Honda Del Sol Motor And Transmission Mount Parts Questions & Experts Answers

Bracket, Transmission Mounting (Automatic)
50825-SR3-980
Q: How to check and replace a Transaxle Mount on Honda Del Sol?
A:
Raise the vehicle and place it on jackstands. Insert a screwdriver between the mount and transaxle and try to lever it. If it moves more than 1/2-3/4-inch, replace the mount. Support the transaxle with a jack, remove the nuts and bolts and remove the mount. Installation is reverse of removal.
