Genuine Honda Del Sol Rack And Pinion
Steering Rack And Pinion- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
8 Rack And Pinions found

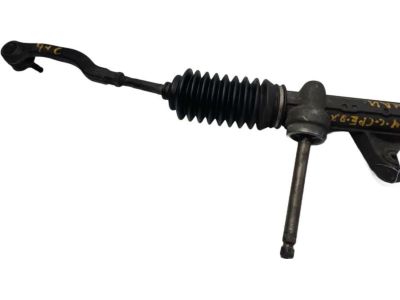

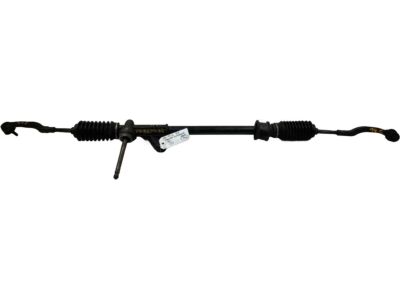

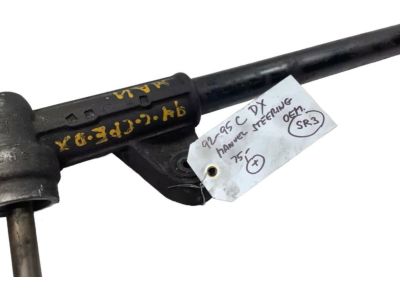

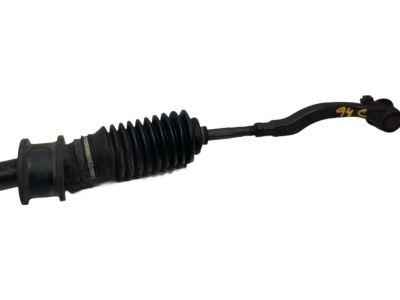

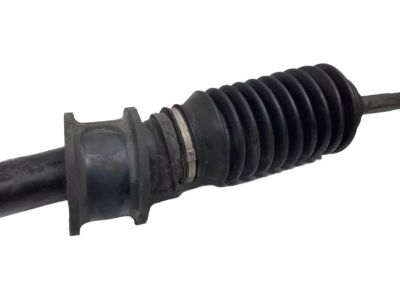

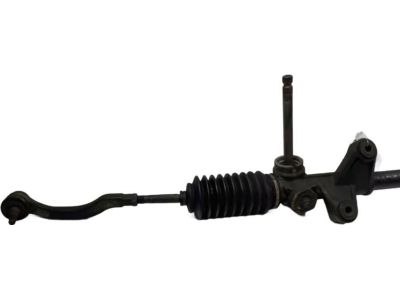

Honda Del Sol Rack And Pinion
Honda Del Sol Rack And Pinion provides fast, direct steering reaction by converting steering-wheel movement to side-to-side movement that steers the front tires. The rack gear is mounted in a metal tube and its ends are connected to the knuckles by tie rods and the steering column rotates the pinion causing the rack to slide the meshing teeth laterally with every turn. Early Del Sol models featured a manual Rack And Pinion that was admired for its low weight and crisp road feel, while later models added the hydraulic assist that presses fluid against internal pistons to lighten effort but maintain accuracy. During the production run of Honda, all Del Sols are equipped with a Rack And Pinion that is tuned for sporty feedback. Inside, the majority of units use straight-cut gears, which are cooler and transmit torque more efficiently and are less prone to play, but some helical sets are cheaper, produce additional side thrust, generate more heat, and wear more quickly. The Honda system is smooth and long-lasting due to regular lubrication in the Rack And Pinion. It is a compact Rack And Pinion assembly that is rigidly mounted to the stiff Honda chassis, has no bulky linkages found in older designs, reduces the overall weight, and helps the Del Sol maintain agile, predictable handling that drivers enjoy on city streets or winding roads.
In search of affordable OEM Honda Del Sol Rack And Pinion? Consider browsing through our extensive inventory of genuine Honda Del Sol Rack And Pinion. Not only do we provide market-leading prices and a manufacturer's warranty, but we also pride ourselves on exceptional customer service and swift delivery.
Honda Del Sol Rack And Pinion Parts Questions & Experts Answers
- Q: How do you remove and install the steering gear on Honda Del Sol?A:To do this, follow the following procedures; This must be done from under the dash, remove the steering joint cover. Identify position of the intermediate shaft universal joint to the Rack And Pinion input shaft and then you remove the pinch bolt. Lift the front of the vehicle and use jackstand to support the vehicle, set the parking brake and turn on the steering wheel lock with the key and do not allow the steering wheel to turn so as not to damage the SRS coil. Subsequently, take out the shift rods or the shift control cable in the transaxle inadmissible and then the catalytic converter. Under the Rack And Pinion, install a drain pan and remove the power steering fluid pressure lines by removing the fittings, disconnected the lines and stop them at their ends or plug them to avoid leaks and contaminants get into the new component. Divide and disconnect the tie-rod ends from the steering knuckle arms and take off the left tie-rod end. Under support the Rack And Pinion and take out the mounting bolts on both sides after which the unit is lowered while disconnecting the intermediate shaft from the Rack And Pinion input shaft. Shift the car's Rack And Pinion rightwards, turn it such that the input shaft is looking in front, and by doing this you pull the left end down beneath the frame to release it from the car. For installation, raise the Rack And Pinion into position and connect the intermediate shaft in such a way that reasonable alignment of the marks. Locate the Rack And Pinion mounting bolts and washers and tighten them, after that insert the left tie-rod end and fasten the tie-rod ends to the steering knuckle arms. Attach the power steering hoses/lines to the Rack And Pinion or joint, fit the transaxle control rods or cable and the catalytic converter. Lower the vehicle, then install the IS pinch bolt, and torque it. Last, put back the steering joint cover and clamps and make sure that the holes in the flange fit the locators on the floor put the recommended fluid into the power steering pump reservoir and bleed the steering system.
